The C3Dt/dz (Double Z) is a variation of the C3Dt/c but with sturdier frame and redesigned to house the SKR 1.3 for 32bit operation.
Features:
- Volume: 200mmx270mmx270mm (XYZ)
- Heated bed

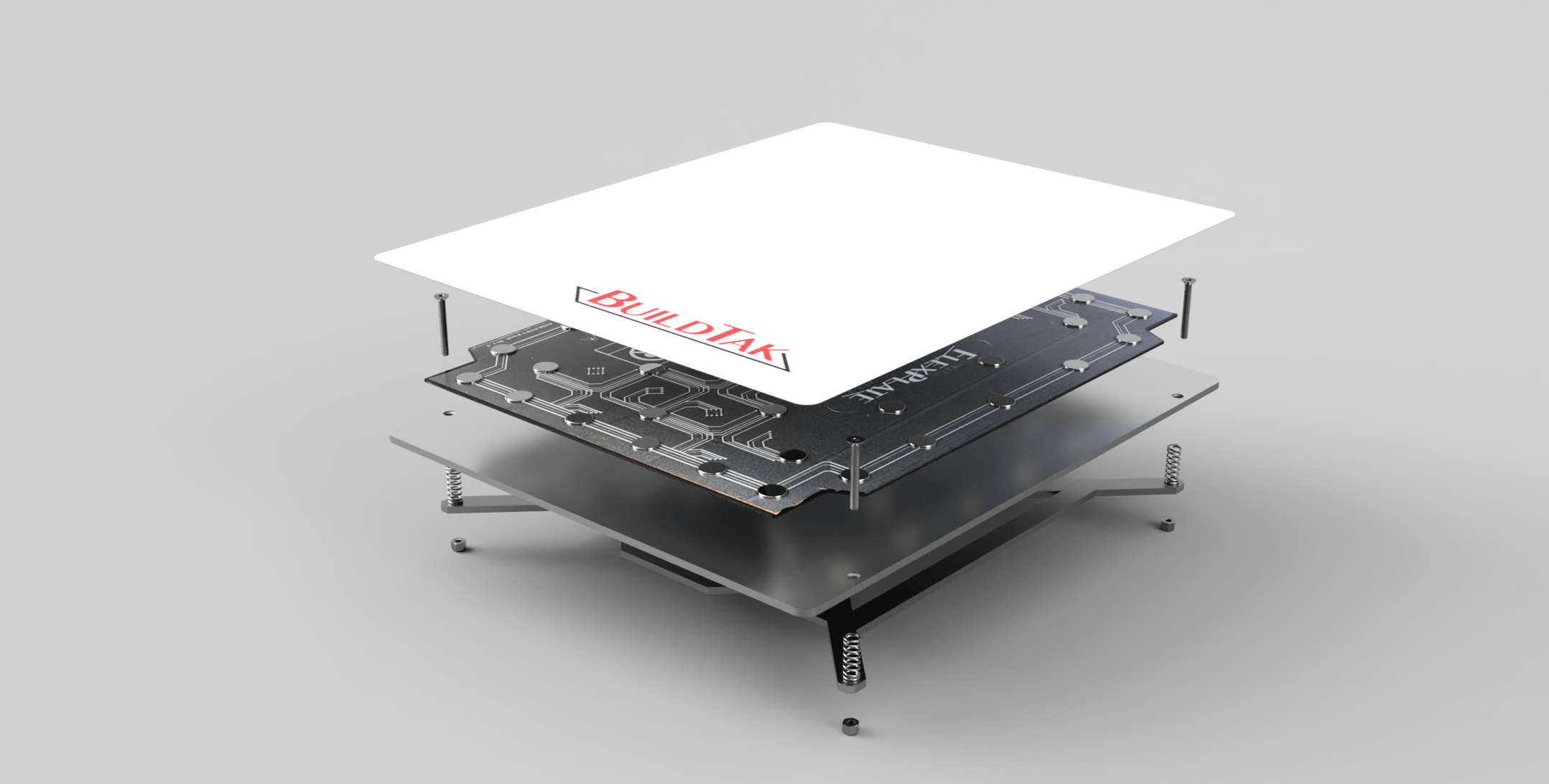

- BuildTak Flex Plate System
- BondTech BMG direct extrusion
- TMC2209 silent stepper drivers
- Marlin Firmware
- Generic Linear actuators for X and Y with Built-in tension springs

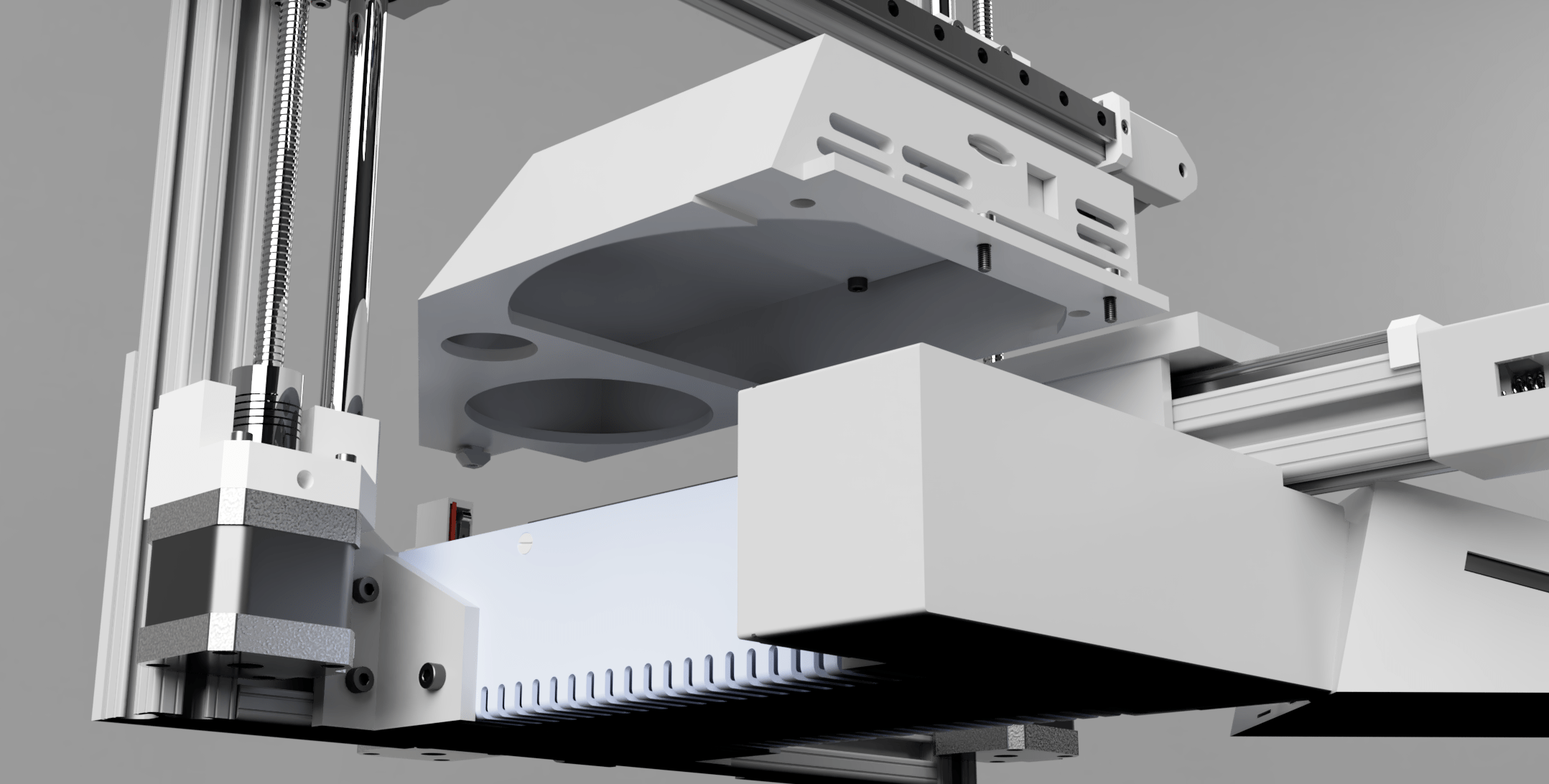

- Enclosed power unit 12V (24 Volt optional)
- SKR 1.3 32bit
- 12mm Z rods for extra stability
- Auto Bed Leveling using inductive sensor
- Noctua ultra quiet heat sink cooling
- BondTech integrated Parts Cooling fan
- E3D V6 Hotend
You can build the C3Dt/dz yourself. Go to https://www.instructables.com/id/Build-Your-Own-C3Dtdz-3D-Printer/ and you’ll find detailed instruction on how to do it.
Here are some videos of the C3Dt/dz at work
Bill of Materials is as follows (total $1,589):
| 8020 Inc | |
| 1010 (1x) 295mm (with align grooves) | $4.62 |
| 1010 (2x) 513mm (with align grooves) | $13.20 |
| 1010 (2x) 395mm (with align grooves) | $11.06 |
| 3382 (25 pack) (x2) | $20.98 |
| 1020 (1x) 295mm | $6.48 |
| 4136 (1x) | $5.65 |
| 4132 (1x) | $3.95 |
| 3059 (10x) | $2.10 |
| 4151 (2x) | $12.60 |
| 3321 (40x) | $20.00 |
| 4127 (2x) | $17.90 |
| 3D Printer Hardware | |
| BondTech BMG | $89.99 |
| BuildTak Flex Plate System | $66.50 |
| Aluminum bed 200x270mm | $47.99 |
| GT2 Timing Belt Pulley 20 Teeth Bore 5mm (2x) | $9.99 |
| GT2 Idler 20 teeth 3mm bore 1x | $9.99 |
| THK SRS-M 320mm (SRS12MUU+320LM) 2x | $316.00 |
| Tension Springs 6x | $9.99 |
| GT2 Timing Belt | $8.69 |
| 12mm x 400mm Rod Shaft Guide (2x) | $30.00 |
| Linear Ball Bearing Slide Block Units (4x) | $19.99 |
| Aluminum bed 220x270mm | $47.00 |
| Lead screw (8mm, 2mm pitch) and nut 400mm (2x) | $10.60 |
| Coupler (2x) | $6.96 |
| Electric | |
| SKR 1.3 Controller board | $21.99 |
| TMC2209 Stepper Drivers | $33.99 |
| 24V 15A DC Universal Regulated Switching Power Supply | $19.98 |
| heated silicone pad kit (custom order) | $50.00 |
| End Stop (Makerbot style) | $9.90 |
| Noctua 40mm fan 5V | $13.95 |
| Power Socket Switch 1x Amazon.com | $5.99 |
| Proximity Sensor Switch LJ12A3-4-Z-BX 1x Amazon.com | $6.59 |
| Stepper Drivers/heat sinks 4x Amazon.com | $8.65 |
| V6 All-Metal HotEnd 1.75mm Full Kit 24V | $56.03 |
| Nema 17 Stepper 4x Amazon.com | $40.89 |
| 12864 LCD Graphic Smart Display Controller Board Amazon.com | $13.59 |
| Fasteners | |
| M3 45mm screws (2x) | $7.99 |
| M3 25mm Hex Socket Head 2x | $8.73 |
| M3 20mm Hex Socket Head 8x | $9.36 |
| M3 16mm Hex Socket Head 19x | $8.99 |
| M3 10mm Hex socket screw (12x) | $8.45 |
| M3 8mm Hex Socket Head 31x | $8.99 |
| M3 6mm Hex Socket Head 15x | $8.09 |
| M3 Socket Flat Head Cap screws 25mm (4x) | $6.89 |
| M3 T-nut 26x (13 at a minimum) | $12.99 |
| M3 Self-Lock Nylon Inserted Hex Lock Nuts 4x | $7.99 |
| M3 square nuts (6x) | $6.99 |
| M5 Hex socket screws 10mm (8-16x) | $8.49 |
| M4 8mm Hex Socket Screw 3x | $8.99 |
| Self tapping screws #2 3/8″ (4x) | $11.94 |
| Wiring | |
| Wiring Quick Disconnects 6x (optional) Amazon.com | $6.99 |
| Fork spade wire connectors 3x (optional) Amazon.com | $6.99 |
| Expandable Braided Sleeving 1/4 inch 25ft Amazon.com | $7.99 |
| 16 gauge wire (red & black) Amazon.com | $16.95 |
| 22 gauge wire (red & black) Amazon.com | $10.98 |
| Stepper Cables 4x Amazon.com | $8.99 |
| Filament | |
| HatchBox PETG white | $22.50 |
| Additional Y Axis | |
| Linear Rail 470mm (2 blocks) | $268.00 |
| 8020 1010 480mm | $6.30 |
| 4136 (1x) | $5.65 |
| 4132 (2x) | $3.95 |
| 3059 (8x) | $1.68 |
| 3382 (8x) | $1.68 |
| M3 8mm Hex Socket Head 20x | $8.99 |
| M3 T-nut 20x | $12.99 |
